Dialysis Water Treatment Systems

Absolute Water Technologies is a leader in providing high-quality dialysis water treatment equipment designed and manufactured by AmeriWater. Our comprehensive range encompasses systems for Central Dialysis with both heat and chemical disinfection options, as well as Portable Dialysis Water units. We are committed to delivering reliable solutions by offering installation, repair, and maintenance services to meet the specific needs of healthcare facilities.

Contact Absolute Water Technologies to request a quote or site survey.

Central Dialysis - Heat Disinfect

Heat Disinfect RO & Distribution Loop (MediQA/Heatsan)

AmeriWater’s MediQA Heat Disinfect Reverse Osmosis can be combined with the Heatsan Loop Heat Disinfection System. When coupled with pre-treatment, this fully integrated water purification solution provides a complete heat disinfect system for 6 to 40 stations (Heat Disinfect RO and Heat Disinfect Distribution Loop).

Reverse Osmosis

AmeriWater’s MediQA Heat Disinfect Reverse Osmosis System uses proven reverse osmosis technology to provide a superior blend of reliability, efficiency and patient safety. Systems with single or dual pass membranes are available. With automated heat disinfection of RO membranes, MediQA units ensure that any potential for bacterial growth on membrane surfaces is minimized. User-friendly operation is managed through a full color touch screen display with comprehensive menu navigation – including full schematics. Password protected stored data includes active status indicators, alarm conditions and performance logs. The stored data can be downloaded to a remote PC or accessed through the touch screen.

Loop Heat Disinfect

The Heatsan from AmeriWater is an integrated heat disinfection system for the distribution loop with a significant advantage: the ability to adjust operation for each day of the week, heating intervals, holding times and disinfection temperatures. As a result, the Heatsan can save energy and staff time while providing up to 100 gallons of 185°F water for disinfection. Incorporating a PLC controller, the Heatsan is operated by a dual color touch screen displaying alarms, system status, tank level and disinfection temperatures plus a password-protected event log holding up to 12 months of data. The construction is rugged yet space-efficient featuring a stainless steel skid and an insulated stainless steel storage tank with sloping base fitted with three heating elements to minimize electrical consumption, level transmitter and temperature monitor.

Features

Reverse Osmosis Features:

  • High recovery mode uses up to 40% less water during operation and results in 100% recirculation.
  • Emergency single pass mode (ESPM) allows the MDP systems to automatically transition to single pass operation in the event of a pump failure.
  • High flow model available for facilities with larger flow requirements.
  • Single and dual pass membrane configurations provides maximum flexibility in water quality.
  • Automated heat disinfection of RO membranes ensures that any potential for bacterial growth on membrane surfaces is minimized
  • Full color touch screen display with comprehensive menu navigation, including full schematics.
  • Advanced data logging technology with password protection.
  • Information available via an integrated touch screen display or downloaded to Excel.
  • Stored data includes active status indicators, alarm conditions and performance logs.
  • 8” TFC membranes in FRP vessels for durability.
  • Powder coated aluminum skid mounted package on castors for maximum maneuverability.



Loop Heat Disinfect Features:

  • Easy step through programming (7 day program)
  • Program syncs dialysis machines with the Heatsan
  • Intelligent monitoring routines, leak detection, and over use
  • Heat disinfect will abort if leak is detected
  • Four levels of password protection
  • Event log holds up to 12 months of data including AAMI standards required end of loop history
  • USB download to Excel
  • Stainless steel skid complete with insulated stainless steel storage tank with sloping base fitted with three heating elements to minimize electrical consumption, level transmitter and temperature monitor
  • Stainless steel recirculation pump, stainless steel solenoid valves
  • The isolation of the RO system is accomplished with three way motorized ball valves that are controlled by the Heatsan



Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

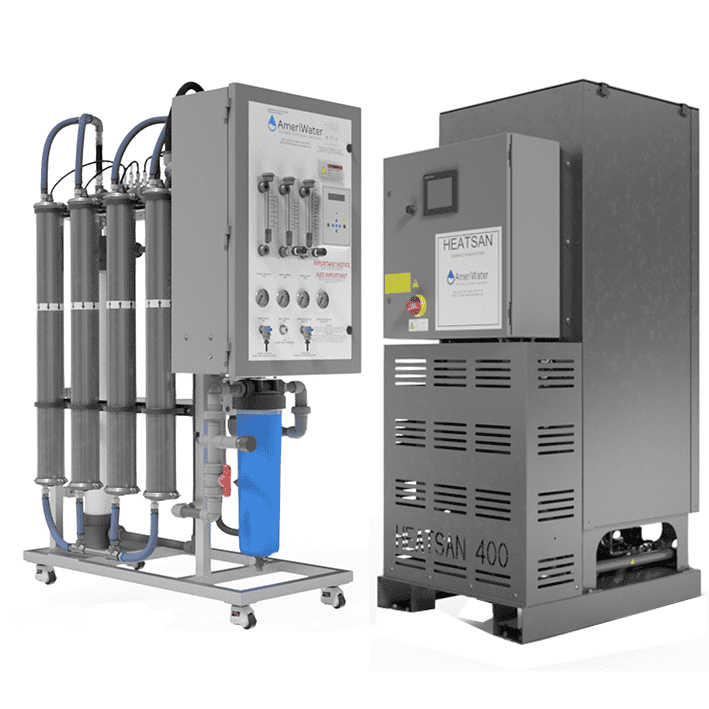

Heat Disinfect Distribution Loop System (MROZ/Heatsan)

AmeriWater’s MROZ Reverse Osmosis can be combined with the Heatsan Loop Heat Disinfection System. When coupled with pre-treatment, this water purification solution provides a complete system for central dialysis (RO is chemically disinfected, Distribution loop is heat disinfected).

Reverse Osmosis

AmeriWater’s MROZ Reverse Osmosis Systems are the best of both; an open frame RO and a cabinet RO. The pump and membranes are mounted on a corrosion resistant, powder coated open frame providing superior serviceability. The controls and hydraulic hardware are mounted in a low profile cabinet with full size door for easy access. Thin film composite membranes provide maximum contaminant rejection while achieving high product flow and low energy use. A microprocessor controller with backlit LCD display shows product and feed water conductivity, product water temperature, operating hours, percent rejection and a variety of operating status messages.

Loop Heat Disinfect

The Heatsan from AmeriWater is an integrated heat disinfection system for the distribution loop with a significant advantage: the ability to adjust operation for each day of the week, heating intervals, holding times and disinfection temperatures. As a result, the Heatsan can save energy and staff time while providing up to 100 gallons of 185°F water for disinfection. Incorporating a PLC controller, the Heatsan is operated by a dual color touch screen displaying alarms, system status, tank level and disinfection temperatures plus a password-protected event log holding up to 12 months of data. The construction is rugged yet space-efficient featuring a stainless steel skid and an insulated stainless steel storage tank with a sloping base for easy drainage.

Features

Reverse Osmosis Features:

  • 4” x 40” thin film composite membranes
  • High pressure stainless steel membrane housings with quick connects enable fast and efficient membrane replacement.
  • Disinfection is quick and easy with a simple push of the keypad, the MROZ can be disinfected with PAA and rinsed in 2 hours.
  • High efficiency quiet submersible pump with integral motor starter and motor protection keeps system running smoothly and protects the motor from overload
  • Programmable flush for storage tank or direct feed keeps RO fresh between uses
  • Product divert feature diverts water to the drain when the conductivity exceeds the set point for added patient safety

Loop Heat Disinfect Features:

  • Easy step through programming (7 day program)
  • Program syncs dialysis machines with the Heatsan
  • Intelligent monitoring routines, leak detection, and over use
  • Heat disinfect will abort if leak is detected
  • Four levels of password protection
  • Event log holds up to 12 months of data including AAMI standards required end of loop history
  • USB download to Excel
  • Stainless steel skid complete with insulated stainless steel storage tank with sloping base fitted with three heating elements to minimize electrical consumption, level transmitter and temperature monitor
  • Stainless steel recirculation pump, stainless steel solenoid valves
  • The isolation of the RO system is accomplished with three way motorized ball valves that are controlled by the Heatsan

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Heat Disinfect Reverse Osmosis (MediQA)

AmeriWater’s MediQA Heat Disinfect Reverse Osmosis System use proven reverse osmosis technology to provides a superior blend of reliability, efficiency and patient safety. When coupled with pre-treatment, this fully integrated water purification solution provides a complete system for 6 to 40 stations. Systems with single or dual pass membranes are available. With automated heat disinfection of RO membranes, MediQA units ensure that any potential for bacterial growth on membrane surfaces is minimized. User-friendly operation is managed through a full color touch screen display with comprehensive menu navigation – including full schematics. Password protected stored data includes active status indicators, alarm conditions and performance logs. The stored data can be downloaded to a remote PC or accessed through the touch screen.

The MediQA Heat Disinfect RO can be combined with the AmeriWater Heatsan Heat Disinfect System for the Distribution Loop for a complete heat disinfect system (RO and Loop).

Features

  • High recovery mode uses up to 40% less water during operation and results in 100% recirculation.
  • Emergency single pass mode (ESPM) allows the MDP systems to automatically transition to single pass operation in the event of a pump failure.
  • High flow model available for facilities with larger flow requirements.
  • Single and dual pass membrane configurations provides maximum flexibility in water quality.
  • Automated heat disinfection of RO membranes ensures that any potential for bacterial growth on membrane surfaces is minimized.
  • Full color touch screen display with comprehensive menu navigation, including full schematics.
  • Advanced data logging technology with password protection.
  • Information available via an integrated touch screen display or downloaded to Excel.
  • Stored data includes active status indicators, alarm conditions and performance logs.
  • 8” TFC membranes in FRP vessels for durability.
  • Powder coated aluminum skid mounted package on castors for maximum maneuverability.

Certifications

  • FDA 510K / ISO 13485 Registered Medical Device
  • Health Canada Medical Device License 90626

Central Dialysis - Chemical Disinfect

Reverse Osmosis Systems (MROZ) – 6,600 up to 17,600 GPD

AmeriWater’s MROZ Reverse Osmosis Systems are the best of both; an open frame RO and a cabinet RO. The pump and membranes are mounted on a corrosion resistant, powder coated open frame providing superior serviceability. The controls and hydraulic hardware are mounted in a low profile cabinet with full size door for easy access. Thin film composite membranes provide maximum contaminant rejection while achieving high product flow and low energy use. A microprocessor controller with backlit LCD display shows product and feed water conductivity, product water temperature, operating hours, percent rejection and a variety of operating status messages.

Features

  • 4” x 40” thin film composite membranes provide maximum contaminant rejection
    while achieving high product flow and low energy use.
  • High pressure stainless steel membrane housings with quick connects enable fast
    and efficient membrane replacement.
  • Disinfection is quick and easy with a simple push of the keypad, the MROZ can be
    disinfected with PAA and rinsed in 2 hours.
  • High efficiency quiet submersible pump with integral motor starter and motor
    protection keeps system running smoothly and protects the motor from overload.
  • The microprocessor controller with backlit LCD display shows: product and feed water
    conductivity, product water temperature, operating hours, percent rejection, and
    a variety of operating status messages.
  • The programmable flush for storage tank or direct feed keeps RO fresh between uses
  • The product divert feature diverts water to the drain when the conductivity exceeds the set point for added patient safety.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Reverse Osmosis Systems (MROX) – 4,320 up to 9,244 GPD

These compact size cabinet Reverse Osmosis Systems are perfect for central dialysis water treatment systems up to 30 stations. Combine two systems for up to double the capacity. AmeriWater’s unique textured cabinet design provides superior durability. With the pump and membranes located inside, the system is so quiet you won’t even know it’s running. When it’s time for maintenance, the hinged doors on the front and rear of the cabinet allow quick and easy access.

Features

  • 4” x 40” thin film composite membranes in stainless steel housings provide superior contaminant rejection and product flow. Quick connect product manifold provides for easy membrane profiling.
  • Disinfection is quick and easy. With a simple push of the keypad, the MROX can be disinfected with PAA in only one hour.
  • The high efficiency quiet pump with integral motor starter and motor protection keeps this system running smoothly and protects the motor from overload.
  • The microprocessor controller keeps you informed of operating conditions with backlit LCD displaying product and feed water conductivity, product water temperature, operating hours, percent rejection, and a variety of operating status messages. Programmable flush keeps RO fresh between uses.
  • The product divert feature diverts water to the drain when the conductivity exceeds the set point for added patient safety.
  • The tank override feature allows the RO to be turned on even if the storage tank is full so the required 15 minute RO run time before sampling can be done.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Reverse Osmosis Systems (MRO3-4) – 4,200 up to 5,600 GPD

This compact size cabinet RO is perfect for central dialysis water treatment systems. AmeriWater’s unique cabinet design provides superior durability. With the pump and membranes located inside, the system is so quiet you won’t even know it’s running! When it’s time for maintenance, the hinged doors on the front and rear of the cabinet allow quick and easy access.

Features

  • Three or four large 4” x 26” membranes have the capacity of producing enough water to feed up to 14 dialysis machines, even on cold water.
  • Disinfection is quick and easy. With a simple push of the keypad, the MRO3 and MRO4 can be disinfected with PAA in only one hour.
  • The microprocessor controller keeps you informed of operating conditions with backlit LCD displaying product and feed water conductivity, product water temperature, operating hours, percent rejection, and a variety of operating status messages.
  • The programmable flush keeps RO fresh between uses.
  • The product divert feature diverts water to the drain when the conductivity exceeds the set point for added patient safety.
  • The tank override feature allows the RO to be turned on even if the storage tank is full so the required 15 minute RO run time before sampling can be done.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Reverse Osmosis Systems (MRO2) – 2,800 GPD

This compact cabinet Reverse Osmosis Systems is perfect for acute dialysis, nursing homes and correctional facilities. AmeriWater’s unique cabinet design provides superior durability. With the pump, membranes and pretreatment located inside, the system is so quiet you won’t even know it’s running. When it’s time for maintenance, the hinged doors on the front and rear of the cabinet allow quick and easy access.

Features

  • Two large 4” x 26” membranes have the capacity of producing enough water to feed up to four dialysis machines, even on cold water.
  • One micron sediment prefilter located inside removes particulate. Pre and post filter gauges are located on the front of the cabinet.
  • The optional onboard anti-scalant pretreatment is located inside the cabinet with easy access for maintenance. No need for a softener or salt. Anti-scalant removes hardness minerals, sending them down the drain.
  • Disinfection is quick and easy. With a simple push of the keypad, the MRO2 can be disinfected with PAA in only one hour.
  • The microprocessor controller keeps you informed of operating conditions with backlit LCD displaying product and feed water conductivity, product water temperature, operating hours, percent rejection, and a variety of operating status messages. Programmable flush keeps RO fresh between uses.
  • The product divert feature diverts water to the drain when the conductivity exceeds the set point for added patient safety.
  • The tank override feature allows RO to be turned on even if the storage tank is full so the required 15 minute RO run time before sampling can be done.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Portable Dialysis Water

Heat Disinfection System for Feed Water Hose – Centurion Plus

The Centurion Plus Heat Disinfection Device is an optional accessory designed to pair with a portable RO system in order to heat disinfect the Hemodialysis machine feed water hose. This section of hose is typically not included in the disinfection of the RO system or Hemodialysis machine. When paired with the Centurion (MROC), this compact unit provides a complete end to end heat disinfection system eliminating the need for chemicals.

The device is intended for use in hospitals, clinics, or dialysis centers to provide heat disinfection of the hose resulting in total viable microbial counts below 50 colony-forming units per milliliter.

Features

  • Provides 11.5 L of 187 °F water at 1 L/min for Hemodialysis machines with
    integrated heat capability
  •  PLC controller with a 4.3” full color LCD touch screen displaying system status,
    alarms and operating parameters
  • Data logging capability to an SD card including disinfection completion message.
  • 1+ years of log data stored on SD card in Excel format
  • Return flow monitoring to prevent flooding in case of hose failure
  • Alarm log that can be viewed on display
  • 2 levels of password protection
  • Insulated stainless steel storage tank for efficient disinfection cycles
  • Semi-automated disinfection cycle designed to minimize user interaction
  • Automatic isolation of RO system when hot water is sent to Hemodialysis
    machine
  • Integrated electrical outlet for feed RO system to monitor current draw allowing the system to disable heat disinfection
    capability when current draw exceeds 15 A to prevent overloading 15 A breaker circuits
  • Integrates with new and existing MROC systems

Reverse Osmosis System – Portable Heat Disinfect

The Centurion by AmeriWater is a sleek, compact Portable Heat Disinfect Reverse Osmosis System, which includes a .005 micron ultra-filter that enhances the microbiological quality of the water. With its cool drain technology, utilizing fresh water, the RO can be used immediately after heat disinfection, which only takes up to 90 minutes. The programmable auto flush and continuous recirculation of product water up to the point of use, in addition to the break tank emptying on shut off, eliminates the potential for bacterial growth. The system consistently produces quality water on demand. Data is easily downloadable via a USB connection to an Excel file and includes status changes, alarms and process values to help users analyze the unit’s performance. AmeriWater’s Centurion has a whisper quiet nocturnal mode with single touch activation, which allows the patient to dialyze overnight without being disturbed.

Features

  • Maximum flow rates of 1500 ml/minute
  • The permeate specification exceeds recognized dialysis water treatment standards
  • Integrated hot water disinfection of the membrane and loop for enhanced microbiological performance
  • Cool drain technology
  • Whisper quiet nocturnal mode
  • State of the art, touch screen display for easy control
  • Data logging
  • Automatic service reminders
  • Upgradable software via USB
  • Break tank with air gap to protect raw water supply
  • Semi-automated chemical cleaning program
  • Recirculation and heat disinfection of product water up to the point of use
  • Internal leak detection system for peace of mind within the home environment
  • .007 ultra-filtration final module provides enhanced microbiological specification
  • Audible alarm with mute facility
  • Antimicrobial coated fascia
  • Anti-tilt
  • Optional 20” x 20” cart is available for portability (p/n 0090-0004) includes one 10” 1 micron sediment filter and two 20” carbon block filters

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Reverse Osmosis Systems – Portable Single Patient (MROS)

Water treatment for hemodialysis – portable reverse osmosis systems

AmeriWater’s portable reverse osmosis systems are designed for ease of use, quiet operation, and superior reliability. The unique compact design is a complete package. All pretreatment, which includes dual carbon filters, sediment filter, and anti-scalant for hardness reduction, is located inside the cabinet. These units have everything you need to transform your tap water into product water for dialysis. The compact size and easy maneuverability make AmeriWater’s portable ROs perfect for single patient use in a medical facility or for professional home care.

Features

  • Entire device conforms to IEC UL standard 60601-1.
  • Recirculation feature reuses excess product water reducing water usage up to 45%.
  • RO is fed with cleaner water, improving the quality and performance of the unit.
  • Plug-n-play controller provides easier access to program changes and disinfect mode.
  • Controller keeps you informed of operating conditions by displaying water quality readings and alarms.
  • The system will prevent product water flow to the patient if an alarm signals.
  • Quick and easy onboard disinfection with the push of a keypad.
  • Dual membranes, in stainless steel housings, provide higher flow rates than other single patient systems on the dialysis market.
  • The dual chloramine removal carbon cartridges are a special blended carbon block design that satisfies AAMI and CMS requirements.
  • Nephros dual stage ultra-filter blocks microbiological contaminants down to 0.005 microns.
  • Test ports on the front cabinet simplifies sample taking.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

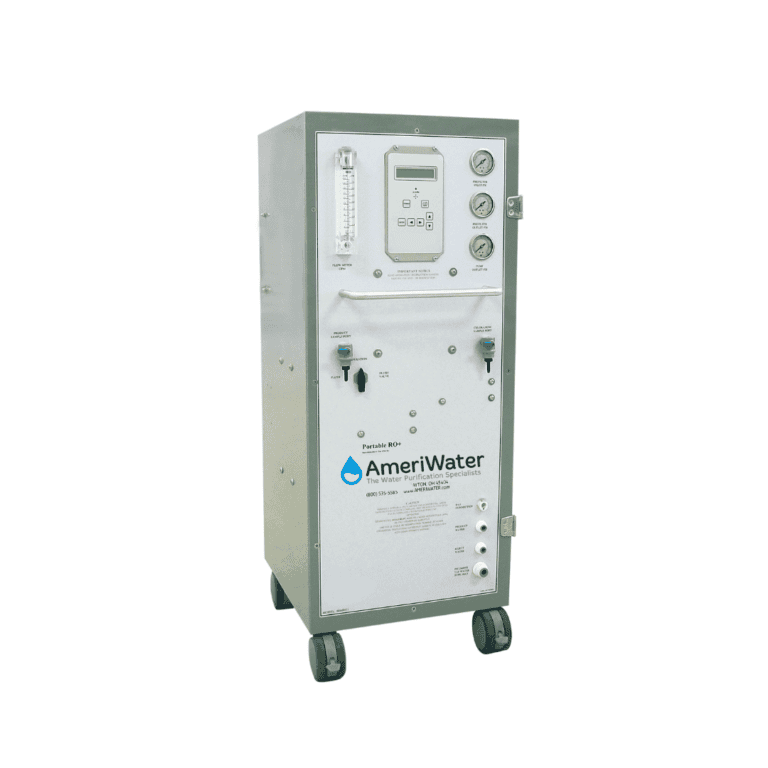

Reverse Osmosis Systems – Portable up to Two Patients (MRO1)

Water treatment for hemodialysis – portable reverse osmosis systems

AmeriWater’s portable Reverse Osmosis Systems are designed for ease of use, quiet operation, and superior reliability. Unlike other portable Reverse Osmosis Systems, AmeriWater’s unique compact design is a complete package. All pretreatment, which includes dual carbons (tank plus filter) and anti-scalant for hardness reduction, is located inside the cabinet. It has everything you need to transform your tap water into dialysis quality water. No softener or salt is needed.

Features

  • Entire device conforms to IEC UL standard 60601-1.
  • Recirculation feature reuses excess product water reducing water usage up to 45%.
  • RO is fed with cleaner water, improving the quality and performance of the unit.
  • Plug-n-play controller provides easier access to program changes and disinfect mode.
  • Controller keeps you informed of operating conditions by displaying water quality readings and alarms.
  • The system will prevent product water flow to the patient if an alarm signals.
  • Quick and easy onboard disinfection with the push of a keypad.
  • Large membrane has the capacity to feed two dialysis machines, even on cold water.
  • Nephros dual stage ultra-filter blocks microbiological contaminants down to 0.005 microns.
  • Test ports on the front cabinet simplifies sample taking.

Certifications

  • Entire device conforms to IEC UL standard 61010-1
  • FDA 510K / ISO 13485 Registered Medical Device

Contact Us

Service Center Locations:


Phone Number:
 (866) 986-6860

Email: info@absolutewatertech.com

Hours:

  • Monday: 8AM-5PM
  • Tuesday: 8AM-5PM
  • Wednesday: 8AM-5PM
  • Thursday: 8AM-5PM
  • Friday: 8AM-5PM
  • Saturday: By Appointment
  • Sunday: By Appointment


*Emergency service is available.


CONTACT US

Options/Questions*:
Any Questions?
